Estes equipamentos são pela sua complexidade caros, tratando-se de um aparelho de precisão.

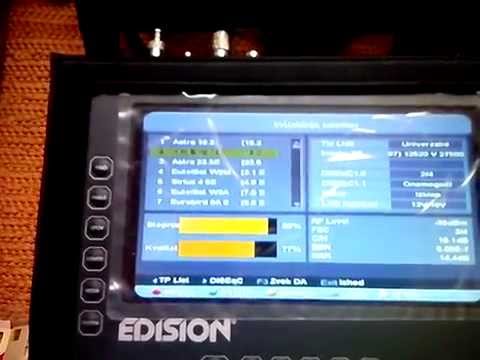

A Exposat. Lda, tem agora à sua disponibilidade um medidor de campo com caracteristicas muito interessantes e um preço muito acessivel. Consulte-nos por favor
Veja aqui o que lhe propomos:
Características principais:
- Satellite DVB-S2 + Terrestrial DVB-T2 + Cable DVB-C
- One Conax Embedded Card Reader
- One Common Interface Slot
- Blind Scanning
- Satellite Spectrum Analyzer
- Satellite Dish Angle Calculator
- Full Feature Portable HD Set-Top Box
- Internal 2Gb Storage
- Full HD Digital Video Output through HDMI
- Multimedia Playback (MKV, AVI, MPG, MP3, MP4, etc...)
- RCA In & Output for External Video Sources & Displays
- Easy Database Management and Transfer via USB
- Dynamic Error Rate Calculation & Display
- Automatic DiSEqC 1.0 configuration detection
- Unicable & DiSEqC 1.0, 1.1, 1.2 & USALS support
- Ethernet Connection & USB WiFi Support
- 5.5Ah Battery with Life Up to 7 Hours
- Remote Control & Car Charger included
- Easy Software Upgrades through USB & Internet
Especificações:
Satellite Tuner:
- Tuner Type: DVB-S / S2
- Input Connector: F-Type (Female)
- Loop Through: F-Type (Female)
- Frequency Range: 950MHz ~ 2150MHz
- Signal Level: -65 to -25dBm
- LNB Power & Polarizations: Vertical: +t13V / +13.5V, Horizontal: +18V / +18.5V
- Current: 300mA, Overload Protection
- 22KHz Tone: Frequency: 22±1 KHz
- DiSEqC Control: Version 1.0, 1.1, 1.2, USALS (Amplitude: 0.6±0.2V)
- Demodulation: QPSK, 8PSK
- Input Symbol Rate: 2-45Mbps, Convolution Code Rate
- FEC: 1/2, 2/3, 3/4, 5/6, 7/8, 1/4, 1/3, 2/5, 3/5, 4/5, 8/9, 9/10 and Auto
Terrestrial Tuner:
- Tuner type: DVB-T / DVB-T2
- Input Connector: IEC-Type (Female)
- Loop Through: IEC-Type (Male)
- Signal Level: Nordig Compliant, DBOOK Compliant
- DVB-T FEC: Viterbi + Reed Solomon 1/2, 2/3, 3/4, 5/6, 7/8
- DVB-T2 FEC: LPDC + BCH 1/2, 3/5, 2/3, 3/4, 5/6
- Input Frequency: 47 ~ 862MHz
- Constellation: QPSK, 16QAM, 64QAM, 256QAM
- Guard Interval: 1/4, 19/256, 1/8, 19/128, 1/16, 1/32, 1/128
- FFT Mode: 1k, 2k, 4k, 8k, 16k, 32k normal and extended
- Channel Bandwidth: 6 / 7 / 8 MHz
- Antenna Power Output: 5V (50mA max.)
- Demodulation: COFDM 2K/8K
- Number of Carriers: 1705 / 6817
Cable Tuner:
- Tuner type: DVB-C
- Input Connector: IEC-Type (Female)
- Loop Through: IEC-Type (Male)
- Frequency Range: 47 ~ 862 MHz
- Signal Level: -20dBmV ~ +20dBmV
- Bandwidth: 7 / 8MHz
- Demodulation: 64 / 128 / 256 QAM
- Input Symbol Rate: 1.5 ~ 7 Ms/sSystem Resources:
- Main Processor: 400MHz
- Flash Memory: 8MB (64Mbits)
- DDR SDRAM: 128MB (1024Mbits)
- Internal Storage: 2GB (FAT16)
Power Supply:
- Input Voltage: 14.5V DC (4A)
- Battery: 11.1V (5.5Ah)
- Battery Charging Time: ~3.5 Hours
- Battery Discharging Time: ~6-7 Hours
MPEG TS A/V Decoding:
- Transport Stream: MPEG-2, H.264
- Input Rate: Max. 120Mbit/s
- Aspect Ratio: 4:3, 16:9
- Video Decoding: MPEG-2, MP@ML, MPEG-4 Part 10 / H.264
- Video Resolution: 720x480p/i, 720x576p/i, 1280x720p, 1920x1080p/i
- Audio Decoding: MPEG-1 layer I/II, MPEG2 layer II, Dolby Digital, Dolby Digital Plus
- Audio Mode: Left / Right / Stereo / Mono
- Sampling Rate: 32, 44.1 and 48KHz
A/V & Data Input / Output:
- A/V In/Out: CVBS Video Input / Output, Audio L/R Input / Output
- HDMI: Ver1.3 (Type A)
- USB Host: Type-A (High Speed USB2.0) slot
- USB Slave: Mini USB (Type-B)
- Ethernet: RJ45 (10/100M)
- RS-232C: 3.5mm Jack Type (Transfer Rate: 115.2Kbps)
Physical Specifications:
- LED Display: 7 inch
- Size (WxHxD): 242mm x 160mm x 46mm
- Net Weight: <2Kg
- Operation Temperature: 0ºC ~ 45ºC
- Storage Temperature: -10ºC ~ 70ºC
- Storage Humidity: 5% ~ 95% RH (Non-Condensing)
